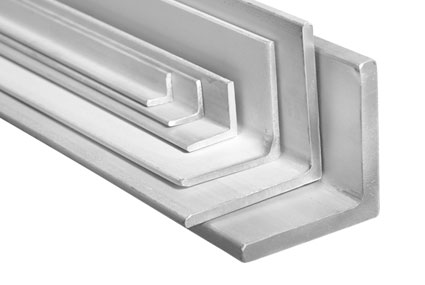

ANGULOS DE LADOS IGUALES
Especificaciones generales
- Calidad: AISI304/304L
- Largo normal: 5.80 metros
- Dimensiones: 1/2” a 3”
- Espesor: Desde 1/8” a 1/4”
| ALEACIÓN | ASTM | PULIDO | ESPESOR mm(pulg) | ANCHO mm (pie) | LARGO mm (pie) | PESO KG/M (LB/PIE) |
| AISI304L | A276 / A484M | No.1 | 3.17 (1/8) | 19.0 (3/4) | 5,800 (19.03) | 0.86 (0.5845) |
| No.1 | 3.17 (1/8) | 25.4 (1) | 5,800 (19.03) | 1.18 (0.7971) | ||
| No.1 | 3.17 (1/8) | 31.8 (1-1/4) | 5,800 (19.03) | 1.50 (1.0097) | ||
| No.1 | 3.17 (1/8) | 38.1 (1-1/2) | 5,800 (19.03) | 1.81 (1.2223) | ||
| No.1 | 3.17 (1/8) | 50.8 (2) | 5,800 (19.03) | 2.45 (1.6475) | ||
| No.1 | 4.76 (3/16) | 25.4 (1) | 5,800 (19.03) | 1.71 (1.1557) | ||
| No.1 | 4.76 (3/16) | 31.8 (1-1/4) | 5,800 (19.03) | 2.19 (1.4747) | ||
| No.1 | 4.76 (3/16) | 38.1 (1-1/2) | 5,800 (19.03) | 2.66 (1.7936) | ||
| No.1 | 4.76 (3/16) | 50.8 (2) | 5,800 (19.03) | 3.61 (2.4312) | ||
| No.1 | 6.35 (1/4) | 38.1 (1-1/2) | 5,800 (19.03) | 3.47 (2.3381) | ||
| No.1 | 6.35 (1/4) | 50.8 (2) | 5,800 (19.03) | 4.74 (3.1883) | ||
| No.1 | 6.35 (1/4) | 76.2 (3) | 5,800 (19.03) | 7.27 (4.8887) |
** Angulos con otras características se pueden suministrar bajo pedido.
